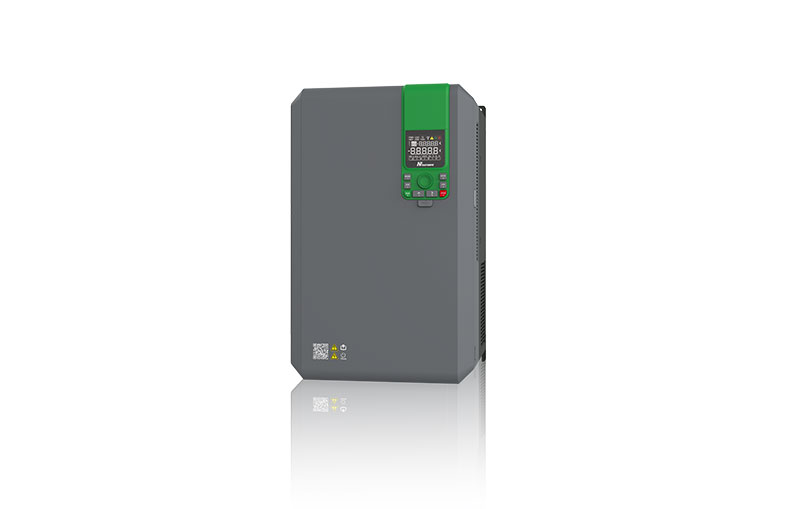

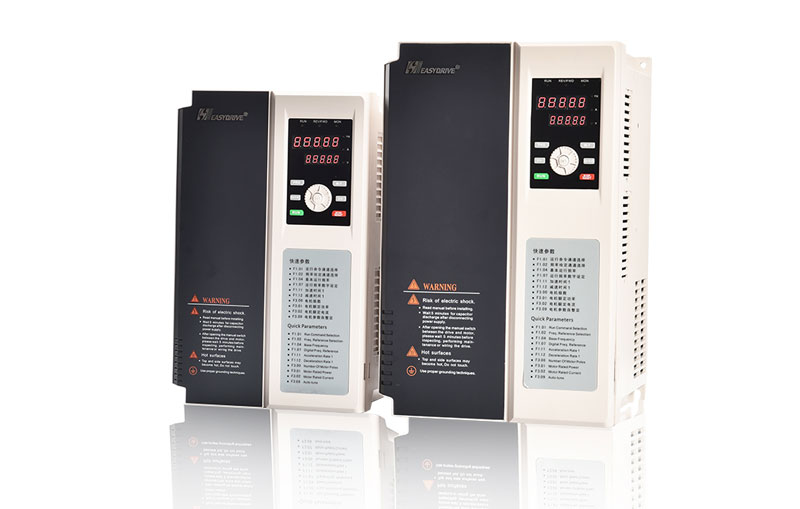

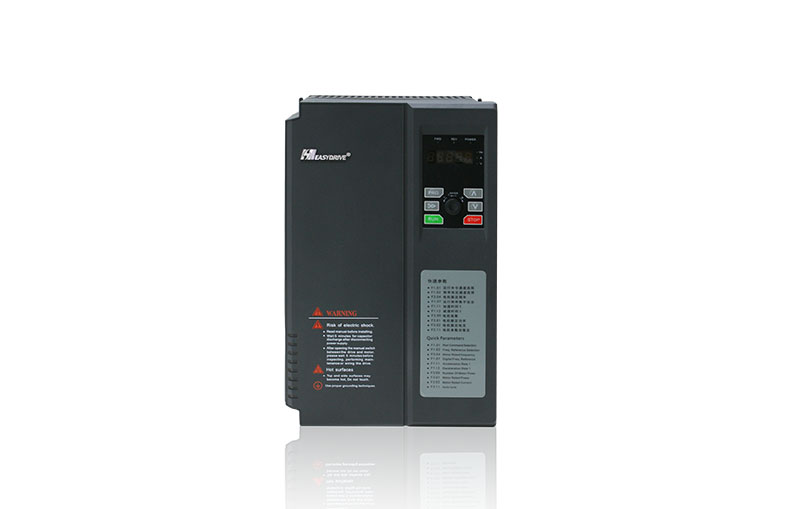

GT600 Series High Performance Current Vector Inverter
GT600 series is a general-purpose high-performance current vector inverter with the advantages of dexterity and ease of use, rich configuration, superior performance, strong scalability, safety and reliability, and equipped with a unique communication protocol, which can achieve fast and stable interconnection and the transformation from single to multiple units.It is mainly used to control and regulate the speed and torque of three-phase AC asynchronous motors and permanent magnet synchronous motors.
-
Product Overview
-
Download
Products
Present
GT600 series is a general-purpose high-performance current vector inverter with the advantages of dexterity and ease of use, rich configuration, superior performance, strong scalability, safety and reliability, and equipped with a unique communication protocol, which can achieve fast and stable interconnection and the transformation from single to multiple units.It is mainly used to control and regulate the speed and torque of three-phase AC asynchronous motors and permanent magnet synchronous motors.
synchronous machine
Super Torque / 3HZ 150% Load
1H up to 150% load with automatic time adjustment
DC voltage control with open loop
Synchronous machine open loop vector
Starting current limiting function, smooth starting torque
0.25HZ can achieve 150% load, speed range up to 1:250
Running frequency up to 1000HZ or more
Synchronous machine open loop vector
Starting current limiting function, smooth starting torque
0.25HZ can achieve 150% of the load, speed range up to 1:100
Specificities
Intelligent full drive: single-phase energy-efficient motor drive, synchronous motor open-loop/open-loop vector control
Safe and reliable: New hardware circuit design IPM drive protection Independent air duct design, high cooling efficiency
Wide range of applications: fans, pumps, all kinds of pumps, lifting Transmission, conveying, machine tools, etc.
Scope of application

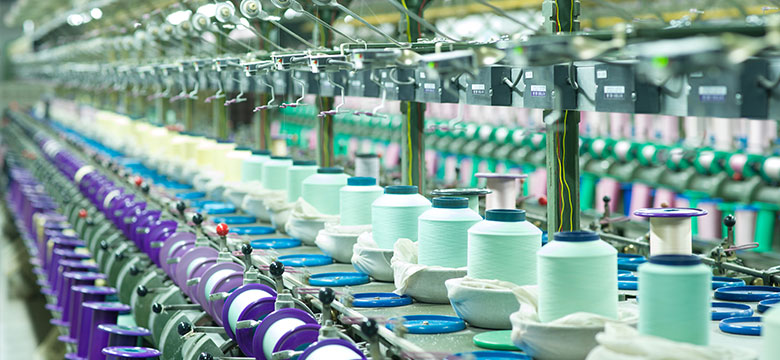

It can be used to drive various automatic production equipment in petroleum, chemical, mining, lifting, machine tool, cable, hydraulic, woodworking, textile, packaging and other industries.
Technical specification
项目分类 | 详细分类 | 参数或描述 |
---|---|---|
基础功能 | 命令源 | 控制端子、通讯、DI/DO、外接扩展卡DIO2、支持多段速控制及逻辑运算 |
输入特性 | 数字输入:0.01Hz,模拟量输入:最高频率<0.1% | |
输出特性 | 模拟量输出:0-10V,0-20mA | |
通讯方式 | 支持Modbus RTU、Modbus TCP、Profinet、Profibus DP、CANopen、Powerlink、EtherCAT、CC-Link、Lonworks等 | |
控制模式 | V/F控制、转矩控制、速度控制、位置控制、伺服控制等 | |
保护功能 | 过流、过压、欠压、过热、短路、缺相等 | |
运行指令 | 操作面板给定 | 控制端子给定,半开环闭环控制 |
模拟量给定 | 支持0-10V、4-20mA模拟量给定 | |
通讯给定 | 支持485通讯给定 | |
个性化功能 | 自由编程 | 可实现自由编程,支持多段速、简易PLC功能 |
后台软件 | 支持GT600专用监控软件,支持U盘拷贝参数,支持故障自检 | |
显示与键盘操作 | LED显示 | 显示运行状态和故障信息 |
LCD显示 | 显示运行状态和故障信息(CD),以及参数修改 | |
环境 | 适用环境 | 室内,无腐蚀性气体、无爆炸性气体、无导电尘埃、通风良好 |
环境温度 | -10℃ ~ +50℃,环境温度每升高1℃,需降额使用,环境温度每升高1℃降额1.5% | |
湿度 | 小于95%RH,无凝露 | |
振动 | 小于5.9m/s² (0.6g) | |
存储温度 | -20℃ ~ +65℃ |
Download
Document type
Upload date
Rig
-
Product Brochure
Related Products
-
GT600 Series High Performance Current Vector Inverter
Product Details
-

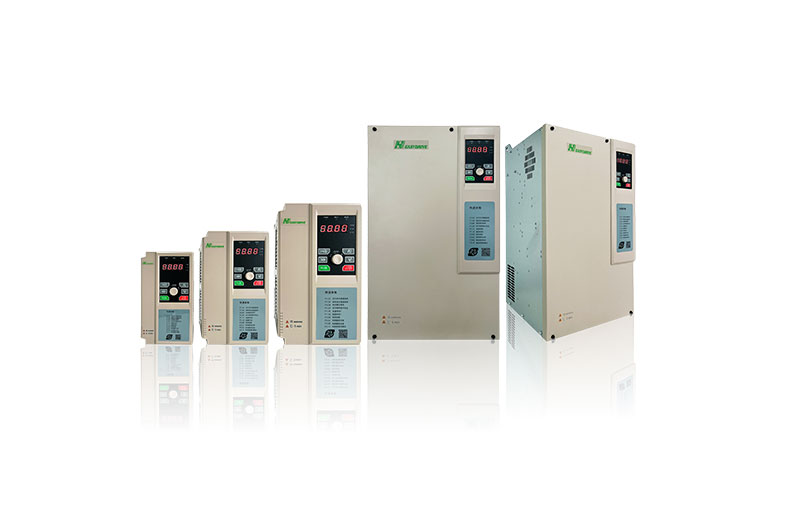

GT200 Series High Performance System Inverter
