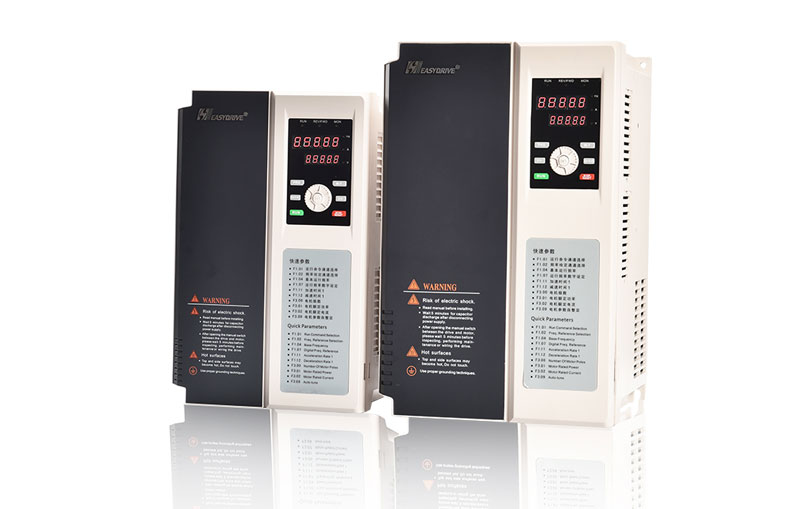

GT200 Series High Performance System Inverter
GT200 series inverter is a high-performance system vector inverter, is a new generation of platform products using open-loop vector and V/F control, the power range covers 0.75kW-850kW.
GT200 has low frequency torque, motor parameter self-recognition, optimal acceleration and deceleration control, wave-by-wave current limiting and other advanced control performance; with a strong / O expansion function, can be customised for customers to expand the capacity of process control cards; with functions to meet the requirements of different processes, such as multi-segment speed control, simple PLC control, PI control, fixed-length control, sag control, automatic energy-saving operation, flexible frequency setting.frequency, various frequency combination methods and combination algorithms and a series of practical functions.
-
Product Overview
-
Download
Products
Introduction
GT200 series inverter is a high-performance systematic vector inverter, which is a new generation platform product of YiDrive Electric adopting open-loop vector and V/F control mode, and the power range covers 0.75kW-850kW.
GT200 has low frequency torque, motor parameter self-recognition, optimal acceleration and deceleration control, wave-by-wave current limiting and other advanced control performance; with powerful / O expansion function, can be customised for customers to expand the capacity of the process control card, etc.; with to meet the requirements of different processes, such as multi-segment speed control, simple PLC control, PI control, fixed-length control, sag control, automatic energy-saving operation, flexible frequency setting.frequency, various frequency combination methods and combination algorithms and a series of practical functions.
Features
Excellent performance
Steady speed accuracy: ±0.5% Rated synchronous speed (SVC)
Speed control range: 1:100 (SVC)
Torque response: <20ms (SVC)
Heavy load overload capacity: 110% rated stable operation, 150% rated load 1min, 180% rated load 3s
Large low-frequency torque, open-loop vector mode, can achieve 0.5Hz
Stable operation with load (150% rated load)
When there is an instantaneous sudden change in load, the inverter can maintain sufficient torque output capacity and run without tripping.
Wave-by-wave current limiting: it can limit the motor current to a certain level without affecting the output torque It can accurately identify the motor parameters and realise high-performance vector control.
It can realise static self-learning and dynamic self-learning to adapt to different working conditions.
Accurate adjustment of motor parameters can be realised under long-distance cable condition.
Rich and comprehensive application functions
Double-row LED display; Flexible multi-segment V/F curve; Multi-segment speed control; Easy PLC application;
Frequency binding and switching Frequency source and command source selection; Powerful communication function; PI control; Closed-loop preset; Sleep function and zero frequency return difference
Frequency primary and secondary feed; Pulse frequency input and output; Fixed length control; Speed tracking; Sag control; Automatic energy-saving operation; Motor tone adjustment; Instantaneous stop without stopping
Multi-protection and overload pre-warning; analogue output terminal; automatic running time accumulation; user password setting; built-in braking unit below 22KW; strong expansion capability Excellent adaptability
Wide operating voltage range: rated voltage 220~240V/380V~440V; through the automatic voltage regulation (AVR) technology, long-term low voltage modulation technology, to ensure that the load carrying capacity in a wide range of operating voltage.
Standard EMC design, grid surge, grid noise, electrostatic immunity, to meet the harsh industrial standards 18.5KW or more models can be equipped with optional DC reactor to meet the high power factor, low harmonic requirements of the grid
Carrier frequency selection, according to the environmental humidity, automatic adjustment of the carrier frequency
Power system compatibility: the inverter is suitable for neutral grounded grid system, when the inverter is installed in ungrounded IT power system or high impedance (more than 30Ω) grounded power system, or in corner grounded TN power system.
When installing the inverter on ungrounded IT power systems or power systems with high impedance (more than 30 Ω) or on corner-grounded TN systems, the internal EMC filter is disconnected by removing the EMC screws of the safety capacitor bank.
Comprehensive three-proof paint spraying protection, independent air duct design, optional dust accessories to increase the overall protective capacity to meet the high humidity or dust exceeding the standard occasions for long-term reliable operation.
Fan easy to replace: without disassembling the machine to achieve rapid replacement of the fan, to adapt to the special environment fan replacement, adapted to the frequent need to clean up the air duct debris in special occasions.
Supports wall-mounted, cabinet and through-wall installation, and the keyboard can be led out directly.
Scope of application
It can be used in the drive of automatic production equipment of machine tools, cables, textiles, paper, food, packaging, chemical industry, municipal engineering and so on, to meet the needs of different industrial equipment for performance and function.
Technical specification
项目 | 标准规范 | |
输入 | 额定电压频率 | 三相,380V~440Vac;50Hz/60Hz |
允许电压工作范围 | 电压:380V(-15%)~440V(+10%); 电压失衡率:<3%;频率:±5% | |
输出 | 额定电压 | 380VAC~440VAC |
频率 | 0Hz~550Hz | |
过载能力 | G型:150%额定电流60s P型:120%额定电流60s | |
主要控制功能 | 控制方式 | 开环矢量模式、V/F模式 |
调速范围 | 1:100 | |
起动转矩 | 0.50Hz时 150%额. | |
运行转速稳态精度 | ≤±0.5% 额定同步转速 | |
频率精度 | 数字设定:最高频率×±0.01%; 模拟设定:最高频率×±0.2% | |
频率分辨率 | 数字设定:0.01Hz; 模拟设定: 最高频率×0.1% | |
转矩提升 | 自动转矩提升,手动转矩提升0.1%~30.0% | |
V/F曲线 | 四种方式: 1种用户设定 V/F 曲线方式和 3 种降转矩特性曲线方式(2.0次幂、1.7次幂、1.2次幂) | |
加减速曲线 | 四种加减速时间, 时间单位(分/秒)可选, 最长60小时 | |
直流制动 | 直流制动开始频率:0.00~60.00Hz; 制动时间:0.0~30.0s; 制动电流:0.0~100.0% | |
点动 | 点动频率范围:0.10Hz~50.00Hz; 点动加减速时间0.1~60.0s可设, 点动间隔时间可设 | |
多段速运行 | 通过内置 PLC 或控制端子实现多段速运行 | |
内置PI | 可方便地构成闭环控制系统 | |
自动节能运行 | 根据负载情况,自动优化 V/F 曲线,实现节能运行 | |
自动电压调整(AVR) | 当电网电压变化时, 能自动保持输出电压恒定 | |
自动限流 | 对运行期间电流自动限制, 防止频繁过流故障跳闸 | |
自动载波调整 | 根据负载特性, 自动调整载波频率; 可选 | |
客户化功能 | 定长控制 | 到达设定长度后变频器停机 |
下垂控制 | 适用于多台变频器驱动同一负载的场合 | |
瞬停不停机控制 | 瞬时掉电时, 通过母线电压控制, 实现不间断运行 | |
捆绑功能 | 运行命令通道与频率给定通道可以任意捆绑, 同步切换 | |
运行功能 | 运行命令通道 | 操作面板给定、 控制端子给定、 串行口给定, 可通过多种方式切换 |
频率给定通道 | 数字给定、 模拟电压给定、 模拟电流给定、 脉冲给定、 串行口给定, 可通过多种方式随时切换 | |
辅助频率给定 | 实现灵活的辅助频率微调、 频率合成 | |
脉冲输出端子 | 0~50kHz的脉冲方波信号输出, 可实现设定频率、 输出频率等物理量的输出 | |
模拟输出端子 | 2路模拟信号输出, 分别可选0/4~20mA或0/2~10V, 可实现设定频率、 输出频率等物理量的输出 | |
操作面板 | 双排LED显示 | 可显示设定频率、 输出频率、 输出电压、 输出电流等20种参数 |
按键锁定和功能选择 | 实现按键的部分或全部锁定, 定义部分按键的作用范围, 以防止误操作 | |
环境 | 保护功能 | 输入缺相保护(可选)、 输出缺相保护(可选)、 过流保护、 过压保护、 欠压保护、 过热保护、 过载保护等 |
使用场所 | 室内, 不受阳光直晒, 无尘埃、 腐蚀性气体、 可燃性气体、 油雾、 水蒸汽、 滴水或盐份等 | |
海拔高度 | 低于1000m, 1000m以上按曲线降额使用 | |
环境温度 | -10℃~+40℃ (环境温度在 40℃~50℃ 需降额使用) | |
湿度 | 小于95%RH, 无水珠凝结 | |
振动 | 小于5.9m/s² (0.6g) | |
存储温度 | -40℃ ~ +60℃ | |
结构 | 防护等级 | IP20 |
冷却方式 | 强制风冷, 带风扇控制 | |
| 安装方式 | 壁挂式、 柜式、 透壁式 |
