Application of GT200 series inverter in calendering and slitting integrated machine

I. Introduction


  Automatic constant tension calendering slitting machine is a wide paper or film, the first calendering to improve the smoothness and gloss of the paper (film), and to a certain extent on the thickness of the paper or cardboard (film) to control the process, and then slit into a number of narrow material machinery and equipment, commonly used in papermaking machinery and printing and packaging machinery, and finally with the rewinding of the pneumatic pressure rollers using a constant torque for the winding operation of theequipment.


II. easy drive GT200 series inverter in the film calendering slitting machine is mainly used for calendering, winding link


 GT200 product adopts speed closed-loop torque control mode to achieve stable torque output, torque output range: 0.3%-100% arbitrary adjustment without breaking phenomenon.

The speed command and torque command are given independently by the upper PLC using analogue.

Film torque winding equipment from the unwind unwind tension roller calender roller unwind tension roller winding tension swing frame torque winding roller, to complete the related work.

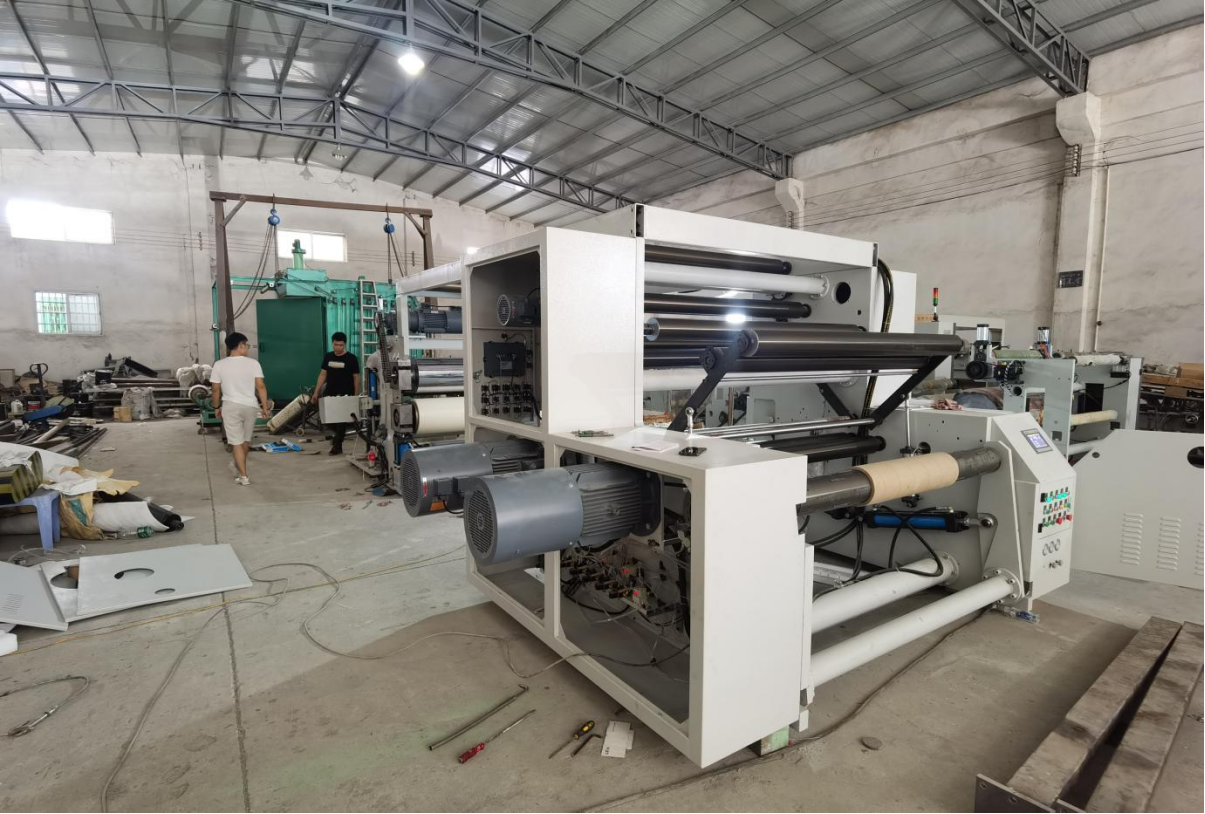

III. easy drive GT200 products in the film torque winding application site pictures




Conclusion


The calender slitting machine torque winding system by virtue of the GT200 series of products of excellent torque stability output effect, stable speed accuracy, as well as the project related to the rapid docking of the staff of various divisions, Shenzhen City, easy to drive the Electric Co., Ltd. rapid response to the scene of the technical debugging, so that the entire system can be fast and efficient stable operation.Easy drive GT200 products in the film torque winding industry on-line operation success, can reach the user needs.
